TIGER 1200 RALLY EXPLORER

Jet Black
Available from 23.640,00 €

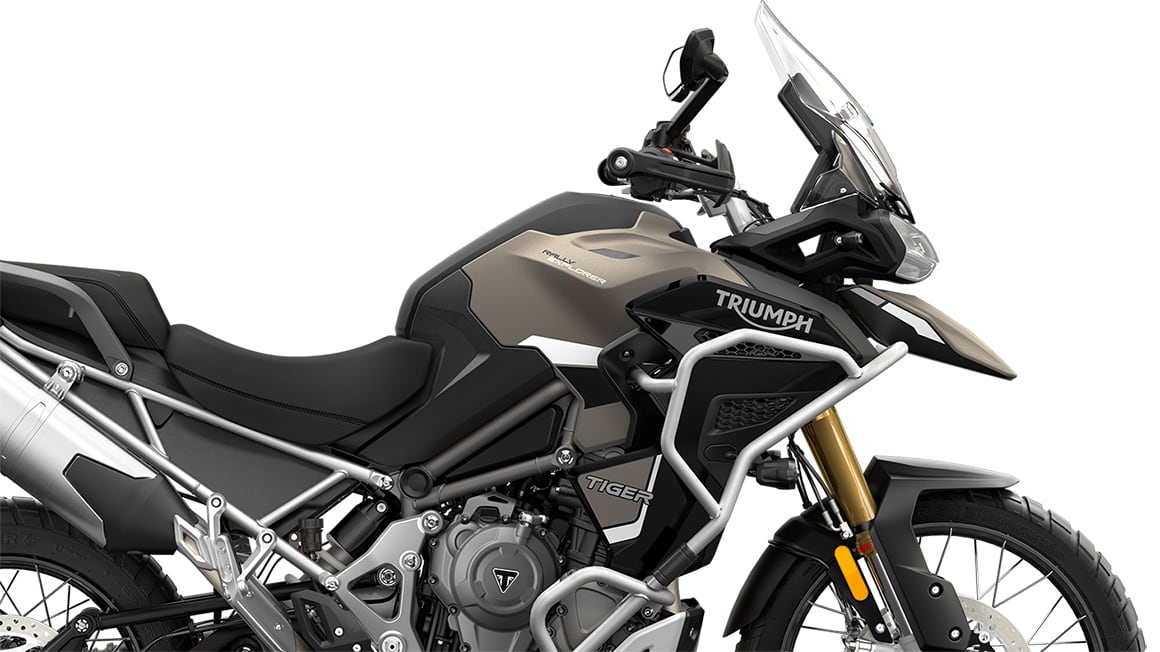

2022 Triumph Tiger 1200 Rally Explorer in Sapphire Black
360 Tap and drag 360 Click and drag
Loading your ride Loading your ride

SPECIFICATION

NOVA TIGER 1200 RALLY EXPLORER Specifications
Feature Details
Price
On the road price Već Od 23.640,00 €

NOVA TIGER 1200 RALLY EXPLORER Specifications
Feature Details
Engine & Transmission
Type Liquid-cooled, 12 valve, DOHC, inline 3-cylinder
Capacity 1160 cc
Bore 90.0 mm
Stroke 60.7 mm
Compression 13.2:1
Max Power EC 150PS / 148bhp (110.4kW) @ 9,000rpm (100PS rain mode)
Max Torque EC 130 Nm @ 7,000 rpm
System Multipoint sequential electronic fuel injection with electronic throttle control
Exhaust Stainless steel 3 into 1 header system with underslung primary silencer and side mounted secondary silencer
Final Drive Shaft drive
Clutch Hydraulic, wet, multi-plate, slip and assist
Gearbox 6 speed

NOVA TIGER 1200 RALLY EXPLORER Specifications
Feature Details
Chassis
Frame Tubular steel frame, with forged aluminium outriggers. Fabricated, bolt-on aluminium rear subframe.
Swingarm Twin sided "Tri-Link" aluminium swingarm with twin aluminium torque arms.
Front Wheel Spoked (Tubeless). 21 x 2.15in.
Rear Wheel Spoked (Tubeless). 18 x 4.25in.
Front Tyre Metzeler Karoo Street, 90/90-21 (M/C 54V TL)
Rear Tyre Metzeler Karoo Street, 150/70R18 (M/C 70V TL)
Front Suspension Showa 49mm, semi-active damping USD forks. 220mm travel.
Rear Suspension 220mm wheel travel Showa semi-active damping monoshock, with automatic electronic preload adjustment and New Active Preload Reduction feature. Depending on the combined weight of rider, pillion and luggage, this feature could lower the riding height by up to 20mm when the motorcycle comes to a standstill, offering greater ease and confidence.
Front Brakes Brembo M4.30 Stylema monoblock radial calipers, OC-ABS, twin 320mm floating discs. Magura HC1 span adjustable radial master cylinder with separate reservoir.
Rear Brakes Brembo single piston caliper, OC-ABS, single 282mm disc. Rear master cylinder with remote reservoir.
Instrument Display and Functions Full-colour 7” TFT instrument pack with My Triumph Connectivity System

NOVA TIGER 1200 RALLY EXPLORER Specifications
Feature Details
Dimensions & Weights
Width Handlebars Handlebars 849mm, handguards 982 mm
Height Without Mirror Low screen 1490mm, high screen 1547 mm
Seat Height Adjustable 875/895 mm
Wheelbase 1560 mm
Rake 23.7 º
Trail 112 mm
Tank Capacity 30 L
Wet Weight 262kg (90% fuel - mass in running order) kg

NOVA TIGER 1200 RALLY EXPLORER Specifications
Feature Details
Fuel Consumption
Fuel Consumption 5.1 l/100km mpg
CO2 Figures 119 g/km EURO 5 Regulation (EU) No. 134/2014 Annex VIII g/km

NOVA TIGER 1200 RALLY EXPLORER Specifications
Feature Details
Service
Service Interval 10,000 miles/16,000 km or 12 months, whichever comes first
